Overhead Self Supporting Ftth Optical Cable Singlemode GYTC8S 24 Or 48 Core
Overhead Self Supporting 24 Or 48 Core Ftth Fibra Optica Cable Singlemode Outdoor Cables GYTC8S
GYTC8S cable, singlemode/multimode fibers are positioned in the loose tubes, while
the loose tubestrand together around metallic central strength member into a compact
and circular cable core,and the water blocking materials are distributed into interstices
of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a
figure-8 structure.
Specification:
Item Name:Fiber optical cable GYTC8S.
Optical Mode:Singlemode/Multimode.
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.
Total Fiber Count:2-144.
Bend Radius(Static/Dynamic):10D/20D.
Working Life:More than 25 years.
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

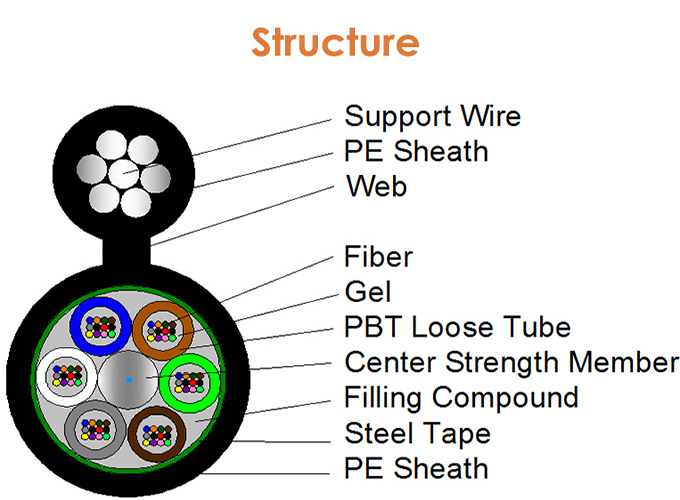

Construction
- Colored fiber
Coated outside diameter:125.0±0.1um Optical diber diameter:242±7um UV color fiber:standard chromatogram Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua - Tube filling compound(Gel)
- PBT loose tube
- Steel wire strengthen core
- Core filler
- Steel wire strand wire
- Steel tape
- Black PE out jacket outside diameter:9.5*18.3mm
|
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
| Fiber count | 36 core |
| Fiber Type: | G652D/G657A1/G657A2 |
| Crush Resistance Long term: | 300 (N/100MM) |
| Crush Resistance Short term: | 1000(N/100MM) |
| Overall Diameter | 9.5*18.3mm |
| Sheath | PE |
| Strand Steel wire | 7*0.8mm |
| Sample Status | In stock |
